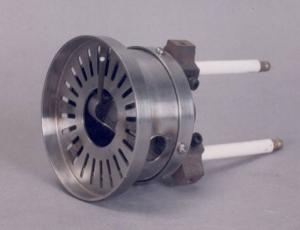

Energy Saving LPG / CNG Gas Burner ( GAS BURNER ASSEMBLY )

HEATING SYSTEMS GAS HEATING SYSTEM GAS BURNER GAS BURNER ASSEMBLY




FULLY AUTOMATIC OPERATION :

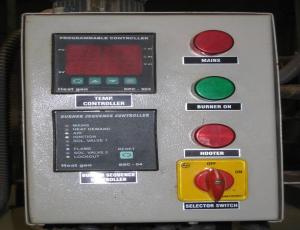

- Simply turning on the switch will put the burner in operation, Intelligent burner controller performs all the parameter checks i.e. flame detection, blower on, etc. In case of failure of any parameters puts the burner In lock out mode, switching off the gas supply and gives visual / audio alarm for operator attendance. ON-OFF / HI-LO OPERATION:- Standard burner comes with on-off control which can be hooked up with automatic temperature controller / thermostat. Specially developed Hi-Lo system for precise control over the set point (optionaf) which can be hooked up witfl Heat gen DTC 302 Temperature Controller (Optional) is supplied as per requirement of the customer. COMPACT DESIGN :- Designed to work in harsh Industrial environment, with easy adaptability to most heating application. Burner and control panel are fitted-separately to avoid damages to control section, ignition transformer, etc. due to back heat. HIGHLY EFFICIENT :- The burner comes with adjustable. Air and Gas flow control for complete combustion of fuel & to achieve tuning of Burnerto various applications resulting in high efficiency. EASY MAINTAINANCE :- Overall construction of burner' permits an easy access to the burner components ensuring easy maintainance. RUGGED CONSTRUCTlON:- Critical components are manufactured with high grade of heat resistant stainless steel material to ensure high quality level and high working life. Burner controllers and other control components used are of high quality and, are housed in separate conirol panel for trouble free operation.lndegenious components avoid Inventecy of imported costly components which in turn reduces running cost. SPARES & SERVICES:- Easy availability of spares & efficient before and after sales service by team of experienced and skilled personnel. APPLICATION GUIDANCE:- Experienced and knowledgable team of engineers to guide &assist in burner selection for customer application.


APPLICATIONS
Drying * Heating (Use in furnace & ovens) * Hot air generator *Powder coating plant * Incinerators *Custom made heating system


FEATURES
Fully Automatic * On / Off Operation * Otional HI-LO Operation with 2 Set Point temp controller * Compact design *Highly Efficient * Easy Maintenance *Rugged design * Easy Adaptability / Installation


MODEL MIN OUTPUT MOTOR POWER HEATLOAD OTHER
HGB30 12 Kw 0.18 kw 35 Kw- 30000 Kcal /Hr LPG/ Natural gas At 50 mbar
HGB 60 35 Kw 0.18 kw 70 Kw-60000 Kcal/ Hr LPG/ Natural gas At 50 mbar
HGB 80 56 Kw 0.25 kw 90 Kw-80000 Kcal/ Hr LPG/ Natural gas At 50 mbar
